ROTO-JET MODELS 111, 121, and 131

JET SPRAY PARTS WASHERS

“No-Lean” Pull-Out Turntable-Attached Door Stout 10 Gauge Steel Body “Labyrinth” Sealless Door Sealless Industrial-Grade Wash Pump Adjustable Solution Temperature Bottom slopes forward for easy clean-out Door can open full 180 degrees Stainless-steel wire mesh debris screen

MODEL RJ-111 PRODUCT BULLETIN

MODEL RJ-121 PRODUCT BULLETIN

MODEL RJ-131 PRODUCT BULLETIN

Our most popular size for small to medium-sized cleaning jobs and startup shops, the Roto-Jet Models RJ-111, RJ-121, and RJ-131 utilize the same cleaning chamber, heater and wash pump, but vary in included features depending on model.

COMMON FEATURES and SPECIFICATIONS

Turntable Diameter: 27”-26” / 68-66 cm Working Height: 32” / 81 cm Load Capacity: 500 lbs / 227 kg Wash Pump: 3 hp / 2.24 kw Heating: 6 kw / 6 kw Solution Cap: 50-70 gal / 189-265 ltr Approx Weight: 960-1250 lbs / 435-567 kg

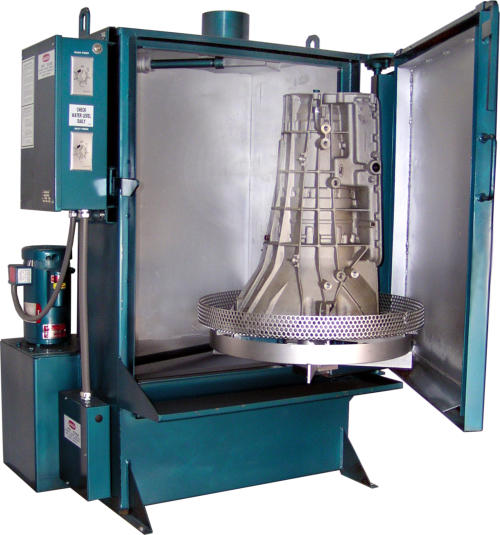

Model 111 Base Model

• Speed-Controlled “Jet-Drive” Turntable • “Impact-1” Spray Jets • Drip-Tray under Turntable is included

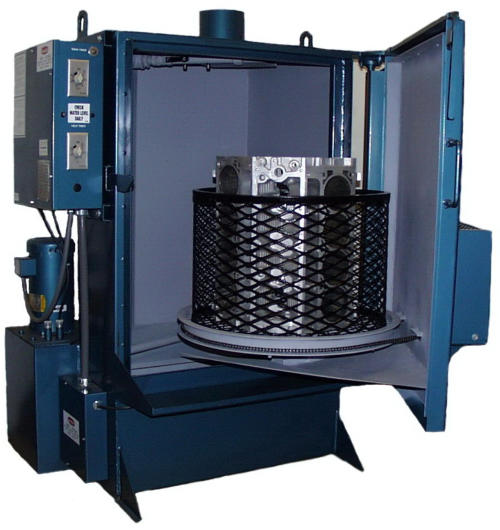

Model 121 includes

• “Jam” Proof Chain-Drive Turntable • Wide-Coverage Fan Jetting • 24” Diameter x 16” High Parts Basket

Model 131 includes

• Thermally Insulated Cabinet • Additional 20 Gallon Front Tank • unit shown with optional Power Exhaust and Mid-Level Spray Bar
